Description
The PHL-03, also referred to as the Type 03, multiple launch rocket system is a Chinese version of the Russian BM-30 Smerch. It was developed by NORINCO and reportedly entered service with the Chinese army in 2004 - 2005. Currently it is one of the most powerful artillery rocket systems in the world. The PHL-03 is also being proposed for export customers as the AR2. It is in service with Morocco (one battalion with 36 units). The PHL-03 retains the original Russian configuration with 12 tubes for 300mm rockets. The standard rocket weighs around 800kg. Some sources claim that its maximum firing range is 150km, however it is most likely to be up to 100km. The PHL-03 is based on a Wanshan WS2400 8x8 special wheeled chassis. This military vehicle has good cross-country mobility. It is fitted with a central tire pressure system which can be adjusted on the move.
Please see the paint guide below for the manufacturer’s suggested colors.
________________________________
Product Details:
Scale: 1/35
Skill Level: 3
Length: 13.9”
Width: 4.3”
Parts: 670+
- Painting and assembly required

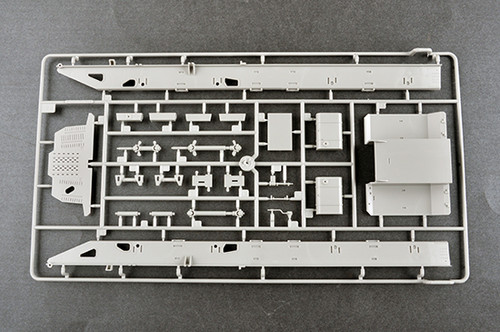

- 19 sprues
- Three photo-etched frets
- One decal sheet
- One-piece upper hull
- Die-cut painting mask
- Poly caps
- Clear parts
- 8 black rubber tires
- Extensive engine assembly
- Optional position crew ladders
- Tires feature accurate tread pattern
- Full drive train assembly complete with engine transmission, differential housing and suspension units
- Separately molded rocket brackets and transfer case
- Individual 300mm rocket tubes with separate detailed rear nozzles
- Complete gauges and individual seating
- Detailed firing control center and cabin cooling units
- Separately molded cabin doors, stabilizing legs and chassis cross-member
- Illustrated instructions and paint guide for two versions
*Cyanoacrylate glue is required for photo-etched parts*
________________________________
Paint Guide:
A. Flat Black
Black
Light Green
Sandy Yellow
Forest Green
Tire Black
Steel
Red
Silver
B. Flat Black
Black
Forest Green
Olive Drab
Yellow
Medium Grey Green
Tire Black
Steel
Red
Silver
White
